PA534 fig.052/Y Kilslidsventil Stål – PN16

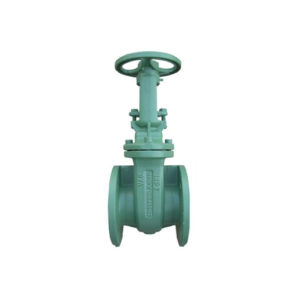

Gate valve in cast steel DN 50 – 150 PN 16
Designation | Material |
---|---|
Body | PA534 fig.052/Y |
Body seat | X15Cr13 |
Wedge | GP240GH+N |
Wedge seat | X15Cr13 |
Stem | X20Cr13 |
Gasket | Graphit |
Bonnet | GP240GH+N |
Hexagon screw | 24CrMo5 |
Hexagon nut | Ck35 |
Packing | Graphit |
Gland flange | GP240GH+N |
T-head bolt | 24CrMo5 |
Hexagon nut | Ck35 |
Threaded bush | GJS-400-15 |
Lubricating nipple | / |
Handwheel | GJS-400-15 |
Hexagon nut | C35 |
Ladda ner en PDF med mer utförlig information PA534-fig_052Y-2
