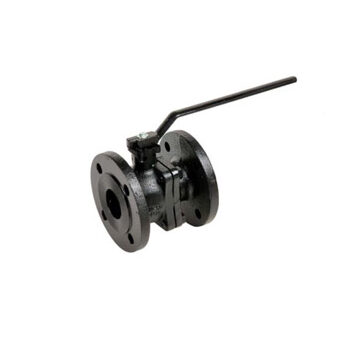

PA 3242. 2-del Kulventil Gjutjärn – PN16 – Fläns
APPLICATION
General use : for all common fluids
GENERAL CHARACTERISCS
From DN15 to DN 200. Full bore
Anti blow-out stem. With O ring FKM on stem and PTFE washer ISO 5211 mounting pad
Solid stainless steel ball up to DN 25, hollow ball from DN 32 to DN 200. Black painting colour RAL 9004
5-15 microns thickness
Produktblad
Certifieringar
- ISO 5211
- ISO 9001
| Art.nr | Anslutning | Dim. | Material | Tryckklass | Bygglängd | Genomlopp | Offert |
|---|---|---|---|---|---|---|---|
| PA3242K-15 | Fläns | 15 | PN16 | 115 | Fullt | ||
| PA3242K-20 | Fläns | 20 | PN16 | 120 | Fullt | ||
| PA3242K-25 | Fläns | 25 | PN16 | 125 | Fullt | ||
| PA3242K-32 | Fläns | 32 | PN16 | 130 | Fullt | ||
| PA3242K-40 | Fläns | 40 | PN16 | 140 | Fullt | ||
| PA3242K-50 | Fläns | 50 | PN16 | 150 | Fullt | ||
| PA3242K-65 | Fläns | 65 | PN16 | 170 | Fullt | ||
| PA3242K-80 | Fläns | 80 | PN16 | 180 | Fullt | ||
| PA3242K-100 | Fläns | 100 | PN16 | 190 | Fullt | ||
| PA3242K-125 | Fläns | 125 | PN16 | 200 | Fullt | ||
| PA3242K-150 | Fläns | 150 | PN16 | 210 | Fullt | ||
| PA3242K-200 | Fläns | 200 | PN16 | 400 | Fullt |
| Komponent | Material |
|---|---|
| Hus | Gjutjärn EN-GJL-250 |
| Kula | Rostfritt stål 303 (DN15-25), rostfritt stål 304 (DN32-200) |
| Säte | PTFE |
| Lock | Gjutjärn EN-GJL-250 |
| Spindel | Rostfritt stål 304 |
| Husmutter | Stål DIN 933 5.6 |
| Handtag | Stål |
