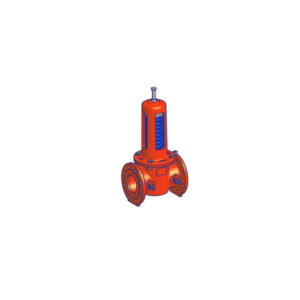

PA DP4243. Direktverkande PN25 Fläns

GENERAL CHARACTERISTICS

Materials carefully selected for resistance to wear, extreme temperatures and
corrosion. Simplicity of design, ensuring minimum maintenance requirements.
Easy installation; may be assembled in any position, even upside down.
Easy to adjust. The valves are supplied unregulated, but with the corresponding
spring, duly identified, for the required pressure reduction. Selft-centring lock
designed to guarantee absolue precision of regulation at the most demanding points.
Stainless steel bellows welded to the plasma.

APPLICATION

General use: ironing machines, laundries and dry cleaners’, cooking vats,
textile machinery, drying cylinders, autoclaves, steam ovens, distilleries, heat
exchangers, the food industry, chemical laboratories, etc.

Handwheel

Aluminium

Control nut

Carbon steel

Axis

Stainless steel

Nut

Carbon steel

Bellow

Stainless steel

Guide

PTFE

Filter

Stainless steel

Spring press

Stainless steel

Seat

 Stainless steel

Bonnet

Aluminium

Body

Ductile iron



Ladda ner en PDF med mer utförlig information DP4243_EN
