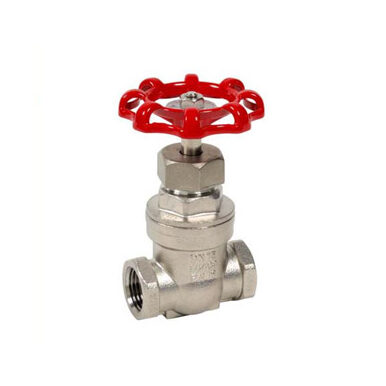

PA V6140. Kilslidsventil Syrafast stål – PN16 – Inv. gänga
APPLICATION
General use: common fluids.
GENERAL CHARACTERISCS
Full bore.
Rotating non rising inside screw stem. Screwed bonnet and single wedge valve.
Female / Female BSP cylindrical. PTFE packing.
Produktblad
Certifieringar
- ISO 9001 :2008
- ISO 228-1
| Art.nr | Anslutning | Dim. | Material | Tryckklass | Bygglängd | Genomlopp | Offert |
|---|---|---|---|---|---|---|---|
| PAV6140-15 | Gänga | 15 | Syrafast stål | PN16 | 55 | Fullt | |
| PAV6140-20 | Gänga | 20 | Syrafast stål | PN16 | 60,5 | Fullt | |
| PAV6140-25 | Gänga | 25 | Syrafast stål | PN16 | 65,5 | Fullt | |
| PAV6140-32 | Gänga | 32 | Syrafast stål | PN16 | 76,5 | Fullt | |
| PAV6140-40 | Gänga | 40 | Syrafast stål | PN16 | 85,5 | Fullt | |
| PAV6140-50 | Gänga | 50 | Syrafast stål | PN16 | 95,5 | Fullt |
| Komponent | Material |
|---|---|
| Hus | Rostfritt stål ASTM A351 CF8M |
| Kil | Rostfritt stål ASTM A351 CF8M |
| Huspackning | PTFE |
| Spindel | Rostfritt stål 316 |
| Lock | Rostfritt stål ASTM A351 CF8M |
| Packbox | PTFE |
| Packboxbricka | Rostfritt stål 304 |
| Packboxmutter | Rostfritt stål 316 |
| Handratt | Zamak |
| Bricka | Rostfritt stål 304 |
| Mutter | Rostfritt stål 304 |
