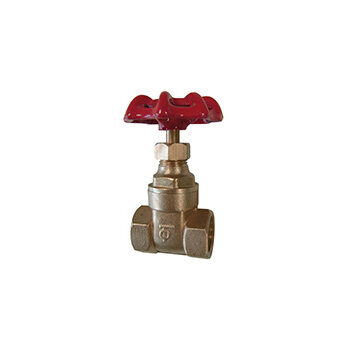

PA V1141. Kilslidsventil Mässing PN16 – Inv. gänga
General Characteristics
Copper alloy body,bonnet and seat.
Operating by painted steel handwheel.
BSP female threaded ends – PN 16.
Application
Cutting of a usual fluid, economic installation,
cold and hot water, low pressure with control for gas.
Produktblad
Certifieringar
- ISO 9001
- ISO 5208
- ISO 228-1
| Art.nr | Anslutning | Dim. | Material | Tryckklass | Bygglängd | Genomlopp | Offert |
|---|---|---|---|---|---|---|---|
| PAV1141-15 | Gänga | 15 | Mässing | PN16 | 43,5 | Fullt | |
| PAV1141-20 | Gänga | 20 | Mässing | PN16 | 47 | Fullt | |
| PAV1141-25 | Gänga | 25 | Mässing | PN16 | 52 | Fullt | |
| PAV1141-32 | Gänga | 32 | Mässing | PN16 | 63 | Fullt | |
| PAV1141-40 | Gänga | 40 | Mässing | PN16 | 66 | Fullt | |
| PAV1141-50 | Gänga | 50 | Mässing | PN16 | 71 | Fullt | |
| PAV1141-65 | Gänga | 65 | Mässing | PN16 | 82 | Fullt | |
| PAV1141-80 | Gänga | 80 | Mässing | PN16 | 96 | Fullt | |
| PAV1141-100 | Gänga | 100 | Mässing | PN16 | 120 | Fullt |
| Komponent | Material |
|---|---|
| Body | Copper alloy CuZn39Pb2 — DIN: CuZn39Pb2, ASTM: B124 C37700, BS: 12164 CZ121 |
| Bonnet | Copper alloy CuZn39Pb2 — DIN: CuZn39Pb2, ASTM: B124 C37700, BS: 12164 CZ121 |
| Nut | Copper alloy |
| Packing gland | Copper alloy |
| Stem | Copper alloy CuZn39Pb2 — DIN: CuZn39Pb2, ASTM: B124 C37700, BS: 12164 CZ121 |
| Handwheel | Casted aluminium |
| Wedge | Copper alloy CuZn39Pb2 — DIN: CuZn39Pb2, ASTM: B124 C37700, BS: 12164 CZ121 |
| Stem packing | EPDM |
| Bonnet washer | Fiber |
