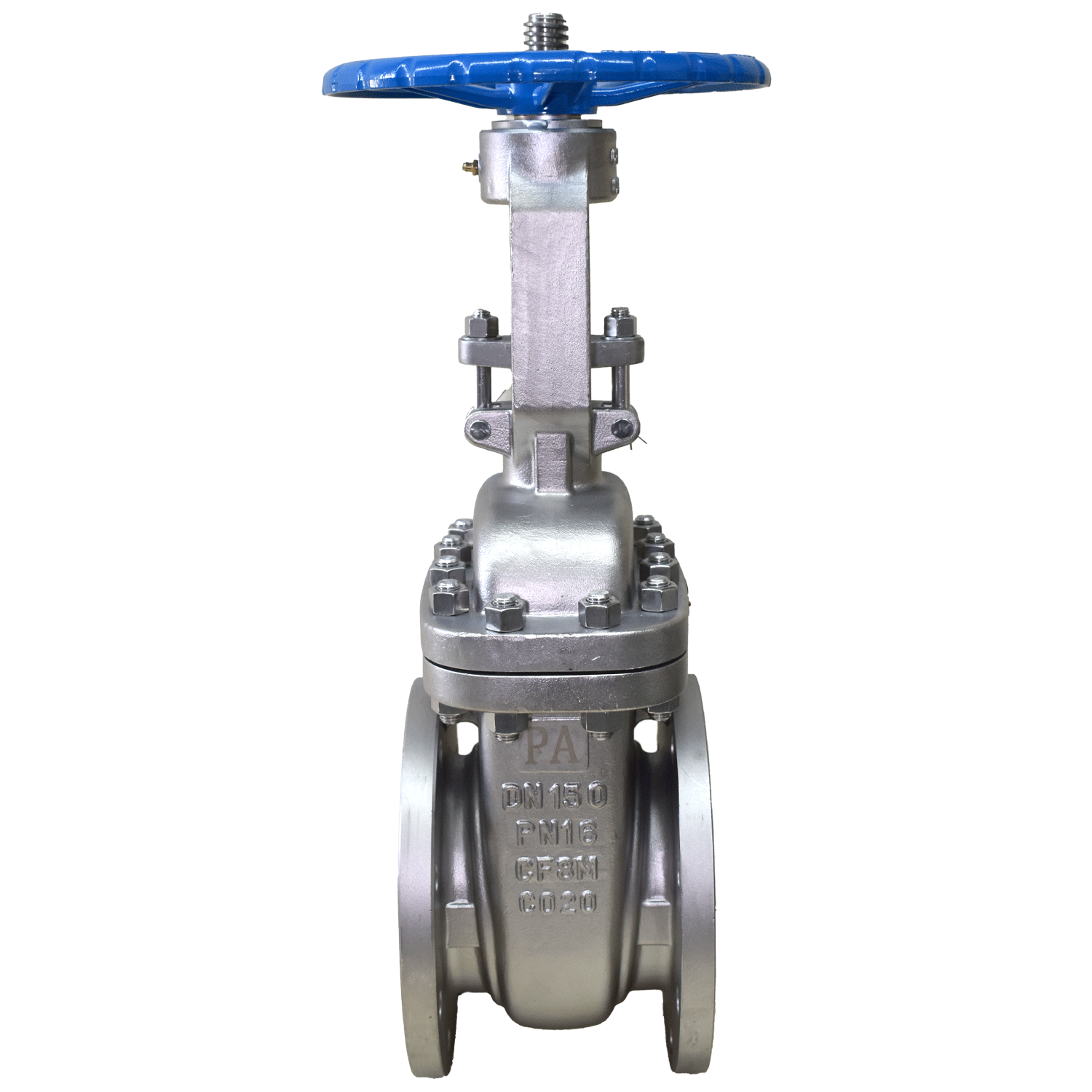

PA548 Kilslidsventil – Syrafast stål – PN16
Gate valve in cast steel DN 50 – 350 PN 16
Produktblad
Certifieringar
| Art.nr | Anslutning | Dim. | Material | Tryckklass | Bygglängd | Genomlopp | Offert |
|---|---|---|---|---|---|---|---|
| PA548-50 | Fläns | 50 | Syrafast stål | PN16 | 150 | Fullt | |
| PA548-65 | Fläns | 65 | Syrafast stål | PN16 | 170 | Fullt | |
| PA548-80 | Fläns | 80 | Syrafast stål | PN16 | 180 | Fullt | |
| PA548-100 | Fläns | 100 | Syrafast stål | PN16 | 190 | Fullt | |
| PA548-125 | Fläns | 125 | Syrafast stål | PN16 | 200 | Fullt | |
| PA548-150 | Fläns | 150 | Syrafast stål | PN16 | 210 | Fullt | |
| PA548-200 | Fläns | 200 | Syrafast stål | PN16 | 230 | Fullt | |
| PA548-250 | Fläns | 250 | Syrafast stål | PN16 | 250 | Fullt | |
| PA548-300 | Fläns | 300 | Syrafast stål | PN16 | 270 | Fullt |
| Komponent | Material |
|---|---|
| Body | ASTM A351 CF8M |
| Seat | ASTM A351 CF8M |
| Wedge | ASTM A351 CF8M |
| Stem | ASTM A182 F316 |
| Stud bolt | ASTM A193 Gr B8 |
| Nut | ASTM A194 Gr 8 |
| Bonnet gasket | AISI 316 + graphite |
| Bonnet | ASTM A351 CF8M |
| Back seat bushing | Coating 13Cr |
| Packing | Graphite |
| Yoke | ASTM A351 CF8M |
| Stem nut | Aluminium + Bronze |
| Ring | E51100 |
| Handwheel | Cast iron |
| Packing gland | ASTM A351 CF8M |
| Gland flange | ASTM A351 CF8M |
